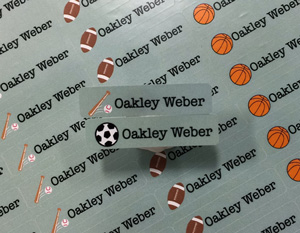

UL Satin Gloss White Polyester Label
#102270 - UL GLOSS PERMANENT POLYESTER LABEL
This 2.0 mil satin gloss polyester label has a 0.8 mil acrylic permanent self adhesive. It is a UL approved printing materials – Component. 102270 has also been found RoHS compliant. The Facestock is satin gloss white and resists degradation from scuffing, chemicals, and wide temperature fluctuations. The self adhesive bonds to high and low energy plastic surfaces and polyester powder coat paints. The adhesive is a clear acrylic with excellent resistance to chemicals even at high temperatures; it is also adaptable to many surfaces with a minimum application temperature of 50°F and a service range -40°F to 302°F. Prints well in color and black & white laser printers (For HP: Tuff Setting).
Short Run
| Sheet Ct. | Price Per Sheet | ||
|---|---|---|---|
| 8.5″ × 11″ | 8.5″ × 14″ | 8.5″ × 17″ | |
| 10 | $11.70 | $14.89 | $18.08 |
| 25 | $9.10 | $11.58 | $14.06 |
| 50 | $7.80 | $9.93 | $12.05 |
| 100 | $5.20 | $6.62 | $8.04 |
| 250 | $3.90 | $4.96 | $6.03 |
| 500 | $3.58 | $4.55 | $5.52 |
Price includes die cutting sheets up to 30 cuts (see Plus Charges for additional cuts) with any shape or size.
Long Run
| Sheet Ct. | Price Per Sheet | ||
|---|---|---|---|
| 8.5″ × 11″ | 8.5″ × 14″ | 8.5″ × 17″ | |
| 500 | $1.95 | $2.48 | $3.01 |
| 1000 | $1.76 | $2.23 | $2.71 |
| 2000 | $1.63 | $2.07 | $2.51 |
| 5000 | $1.43 | $1.82 | $2.21 |
| 10000 | $1.30 | $1.65 | $2.01 |
| 20000 | $1.20 | $1.55 | $1.91 |
Cutting die required. Pick one of our 3,000+ dies free of charge or create a new die. No die required for blanks.
Let us print for you! Full Color Printing available.
Specifications
| Physical Properties | Value |
|---|---|
| Thickness (without liner/adhesive): | 2 mil |
| Temperature Resistance: | -40°F to 302°F |
| Adhesive: | Permanent Acrylic |
| Shear: | 50 |
| Tack: | 360 |
| Minimum Application Temperature: | 50°F |
Technical Specifications for Underwriters Laboratory Users
Rippedsheets.com has Underwriters Laboratory authority in UL file MH26704 to apply the Repackaged Recognition Marking to repackaged label and tag products.
PN 102270 prints well in any color or B/W laser printer with a label setting. Here are the specific printers approved for UL certification:
| Printer Type | Toner Part # |
|---|---|
| HP Laser Jet 4L/ML, 4P/M0 | 92291A |
| HP LJ II/IID and III/IIID | 92295A |
| HP LJ 4/5 Series | 92298A |
| HP LJ 4V and 4MV | C3900A |
| HP LJ 5P/MP and 6P/MP | C3903A |
| HP Laser Jet 5SI and 8000 | C3909A |
| IBM 4039 | Lexmark 1380950 |
| Lexmark 1380850 | |
| IBM 4019/4028/4029 Laser Printer Cartridge (also used in WinWriter 600) | Lexmark 1380200 |
| Lexmark 1380520 | |
| Lexmark Optra series, 4039 10 plus and the IBM 3112 and 3116 | 1382100 |
| 1382150 | |
| Lexmark Optra S | 1382620 |
| 1382625 |
The black and white laser printer/laser toner combinations and pressure sensitive label have been tested by UL and given the following UL certifications:
Approved substrates:
| Minimum Temperature | Maximum Temperature | |
| aluminum | -40°C (-40°F) | 150°C (302°F) |
|---|---|---|
| galvanized steel | ||
| stainless steel | ||
| alkyd enamel | ||
| polyester paint | ||
| porcelain | ||
| acrylic paint | ||
| polyester powder paint | ||
| epoxy/urethane powder paint blend | ||
| epoxy paint | ||
| epoxy powder paint | 125°C (257°F) | |
| Unsaturated Thermoset polyester | 100°C (212°F) | |
| nylon | ||
| melamine plastic | ||
| phenolic | ||
| polycarbonate | 80°C (176°F) | |
| acrylonitrile butadiene styrene (ABS) plastic | ||
| polystyrene | ||
| polybutylene terephthalate | ||
| polypropylene |
Suitable where exposed indoors to high humidity or occasional exposure to water. Also suitable for outdoor use on all surfaces except polypropylene and epoxy powder paint.
CSA approved under CSA Class Number 792201 – Adhesive Type Labels – Label Stock.
| Approved for | Maximum Temperature |
|---|---|
| Approved for indoor and outdoor on metal | 150° C |
| Plastics Group I | 100°C |
| Plastics Groups II, III, IV, V, VI, VII and VIIII | 80°C |
CSA requires that CSA customers must apply for component acceptance for their marking label printed with their laser printer under Class 7921 – Printed Labels which takes as little as two weeks according to CSA. CSA customers must contact the CSA Component Acceptance Department after purchasing Rippedsheets.com materials for CSA laser printing testing and acceptance (Rippedsheets.com PN 102280 is already CUL CSA approved for certain laser printers).
Prop 65 Safe
The Office of Environmental Health Hazard Assessment (OEHHA) approved this material to be listed as safe for children under 12 under Prop 65 and is deemed to be no significant risk.
Certifications
- Coalition of Northeastern Governors (CONEG) Compliant
- http://coneg-certification/Consumer Product Safety Improvement Act (CPSIA) Compliant
- Registration Evaluation Authorization & Restriction of Chemicals (REACH) Compliant
- Restriction of Hazardous Substances (RoHS) Compliant
- Waste Electrical & Electronic Equipment (WEEE) Compliant
- Underwriters Laboratories (UL) Compliant
Availability
This product is stocked and can be shipped in as little as 24 hours. Please contact us for more information.
